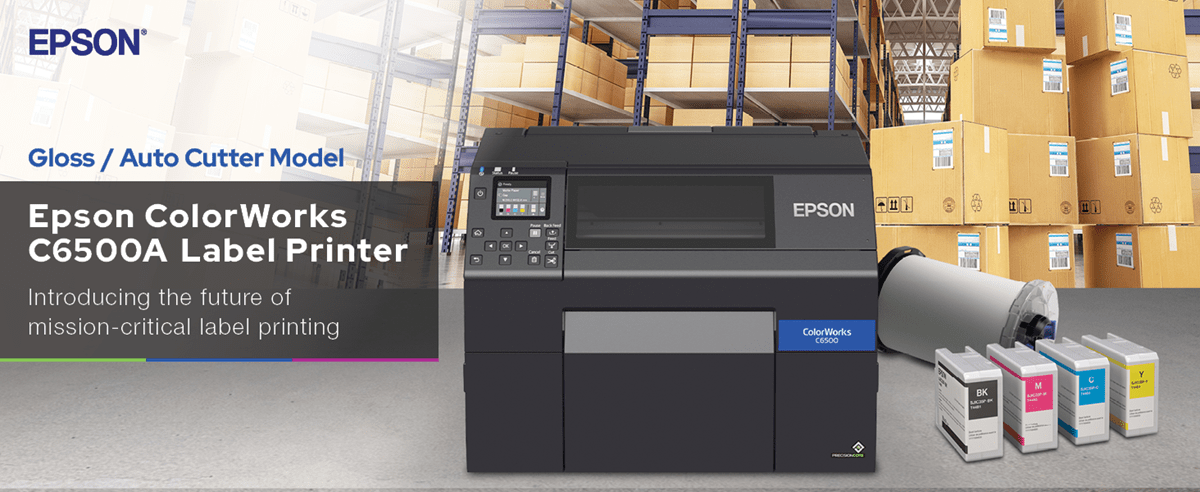

Epson ColorWorks CW-C6500A 8″ Color Inkjet Label Printer with Auto Cutter (Gloss) – C31CH77A9991

The first printer specifically designed as a color upgrade to black-and-white thermal transfer printers, the ColorWorks CW-C6500A inkjet printer delivers on-demand, 8″ color labels at a comparable price. Engineered for mission-critical applications, this reliable printer speeds through labels at up to 5″ per second3. Featuring up to 1200 dpi resolution, the CW-C6500A produces crisp images comparable to pre-printed labels. Compatible with ZPL II, SAP® and more, and built to accommodate remote printer management, this versatile printer offers seamless integration with your existing workflow. And, it comes standard with an auto cutter to create variable length labels and enable easy job separation.

The C6500A gloss printer comes with black ink optimized for gloss label media, which works on the widest variety of substrates, compared to the matte black ink.

Operating Systems:Windows 10, 8.1, 8, 7 SP1, Windows Vista® SP2, macOS® 10.6.8 or later, LinuxServer Systems:Windows Server® 2019, 2016, 2012 R2, 2012, 2008 R2, 2008

Temperature:

• Operating Temperature: 5 to 35 °C/20 – 80% RH humidity
• Storage Temperature: -20 to 60 °C/5 – 85% RH humidity

Sound Level:55 dBA

Dimensions:

• Printer (W x D x H): 17.5″ x 20.3″ x 12.8″ (444 mm x 515 mm x 326 mm)
• Shipping (W x D x H): 24″ x 28″ x 19″ (610 mm x 710 mm x 480 mm)

Weight:

• Printer (Dry): 57.3 lb (26.0 kg)
• Shipping: 81.6 lb (37.0 kg)

Safety Approvals:UL1950/CSA C22.2 No.950, TUV, GOST-R

Warranty:1-year depot repair

Ink:

Ink Type:UltraChrome® DL pigment ink

Ink Palette:

• SJIC35P-C Ink Cartridge (Cyan)
• SJIC35P-M Ink Cartridge (Magenta)
• SJIC35P-Y Ink Cartridge (Yellow)
• SJIC35P-BK Ink Cartridge (Gloss Black)

Ink Configuration:CMYK in individual cartridges

Media Handling:

Width:

• Media width: 1.0″ (25 mm) – 8.5″ (216 mm)
• Print Width: 8.34″ (212 mm)

Type:Inkjet Coated Matte Paper, Gloss Paper, High-gloss Synthetic, Fine Paper, PET Film, Matte Synthetic, Uncoated Plain Paper

Thickness:.005″ – .009″ (0.129 mm – 0.236 mm)

Length:

• Max. 24″ (610 mm)
• Min. 0.31″ (8 mm) no finishing
• 0.50″ (13 mm) peeling
• 0.59″ (15 mm) cutting

Roll Diameter:6.0″ (153 mm)

Core Diameter:3″ (76 mm)

Sensors:Gap, black mark

Guide:

• Gap Sensor Location: Adjustable 0.4″ – 2.4″ (10 mm – 60 mm) in 0.2″ (5 mm) steps from left paper guide
• Black Mark Sensor Location: Fixed at 0.5″ (12 mm) from left paper guide

Black Mark Size:Min. 0.72″ x 0.16″ (18 mm x 4 mm) (W x H)

Die-cut Label Gap:2 mm – 6 mm

Auto Cutter:Life (cuts)

• Paper Liner up to 1.5 M
• Synthetic Liner up to 0.5 M
• Continuous Matte Paper up to 0.5 M
• Continuous Gloss Paper up to 0.3 M
• Continuous Synthetic up to 0.1 M

Fonts:

Barcode:UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBarOmnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded

Two-dimensional Code Printing:PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code

Connectivity:

Standard Connectivity:USB 2.0 High-speed, Ethernet
